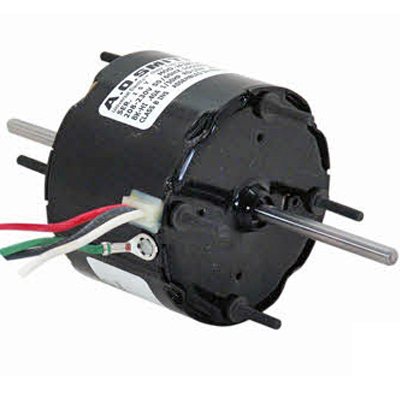

# 9419 - 1/40-1/70 HP, 115 Volt
Product Code: 9419
- Horsepower : 1/40-1/70
- Voltage : 115
- Amps : 1.2/.6
- RPM : 3000
- Frequency : 60 Hz
- Length : 2-7/8"
- Enclosure : Totally Enclosed Air Over
- Shaft Dim. : 3" x 1/4" x 3"
- Type : Shaded Pole
- Speeds : 2
- Diameter : 3.3"
- Bearings : Sleeve
- Rotation : CCWLE
- Protector : Automatic
- Phase : 1
- Ambient Temp. : 40°C
- Feature(s) : Double Shaft, Thru-Bolt
- Weight (lbs.) : 3
