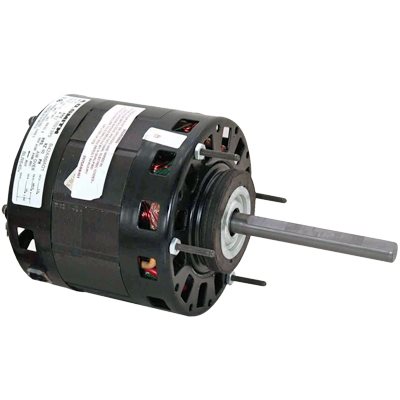

# 684 - 1/5 HP, 115 Volt

Double-tap and hold to zoom.

Mouse over the image to zoom.

Click to Enlarge

# 684 - 1/5 HP, 115 Volt

Product Code: 684

Horsepower : 1/5
Voltage : 115
Amps : 6.80
RPM : 1050
Frequency : 60 Hz
Length : 3-3/4"
"C" Dim. : 7-19/32"
Enclosure : Open Air Over
Shaft Dim. : 1/2" x 3-27/32"
Type : Shaded Pole
Speeds : 2
Diameter : 5"
Frame : 42
Bearings : Sleeve
Rotation : CCWLE
Protector : Automatic
Service Factor : 1.00
Phase : 1
Ambient Temp. : 40°C
Feature(s) : Class 'A' Insulation, Resilient mounting rings included, 3 thru-bolts, 4.42" dia. bolt circle, Hubs
Weight (lbs.) : 11
