Three Phase ODP Motors

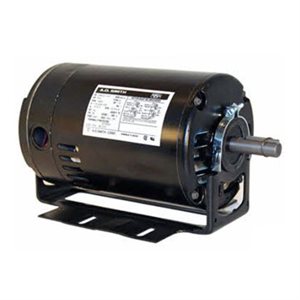

# 5BK3072 - 3/4 HP, 575 Volt

# 5BK3072 - 3/4 HP, 575 Volt
Century
Code: 5BK3072
Amps: 1.05 Freq: 60 Hz RPM: 3450
Shaft: 5/8" x 1-7/8" Rot: REV Brg: Ball
Type: Three Phase Encl: ODP

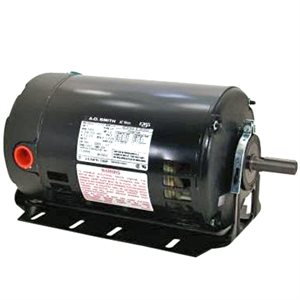

# BK3074 - 3/4 HP, 200-230/460 Volt

# BK3074 - 3/4 HP, 200-230/460 Volt
Century
Code: BK3074
Amps: 2.5/1.25 Freq: 60 Hz RPM: 1725
Shaft: 5/8" x 1-7/8" Rot: REV Brg: Ball
Type: Three Phase Encl: ODP

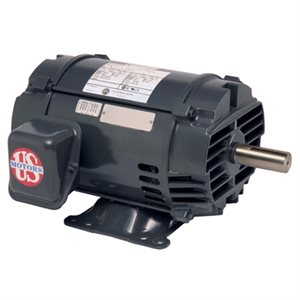

# D10P1G - 10 HP, 575 Volt

# D10P1G - 10 HP, 575 Volt
U.S. Motors
Code: D10P1G
Amps: 9.70 Freq: 60 Hz RPM: 3600
"C" Dim: 15-31/32" Rot: REV Brg: Ball
Type: Three Phase Encl: ODP

# D10P2H - 10 HP, 200 Volt

# D10P2H - 10 HP, 200 Volt
U.S. Motors
Code: D10P2H
Amps: 28.1 Freq: 60 Hz RPM: 1760
Rot: REV Brg: Ball
Type: Three Phase Encl: ODP

# D10P3G - 10 HP, 575 Volt

# D10P3G - 10 HP, 575 Volt
U.S. Motors
Code: D10P3G
Amps: 10.2 Freq: 60 Hz RPM: 1185
"C" Dim: 23.2" Rot: REV Brg: Ball
Type: Three Phase Encl: ODP

# D12P2AH - 1/2 HP, 208-230/460 Volt

# D12P2AH - 1/2 HP, 208-230/460 Volt
U.S. Motors
Code: D12P2AH
Amps: 2.0-1.9/1.0 Freq: 60 Hz RPM: 1725
"C" Dim: 11.39" Rot: REV Brg: Ball
Type: Three Phase Encl: ODP

# D12P2GH - 1/2 HP, 575 Volt

# D12P2GH - 1/2 HP, 575 Volt
U.S. Motors
Code: D12P2GH
Amps: 0.68 Freq: 60 Hz RPM: 1725
"C" Dim: 11.39" Rot: REV Brg: Ball
Type: Three Phase Encl: ODP

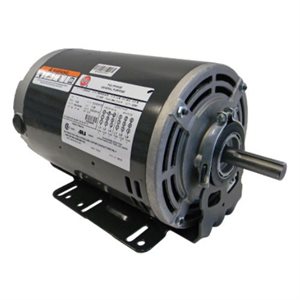

# D12S2A9 - 1/2 HP, 208-230/460 Volt

# D12S2A9 - 1/2 HP, 208-230/460 Volt
U.S. Motors
Code: D12S2A9
Amps: 1.98-1.90/0.98 Freq: 60 Hz RPM: 1725
Shaft: 5/8" x 1.94" Rot: REV Brg: Ball
Type: Three Phase Encl: Open Drip Proof

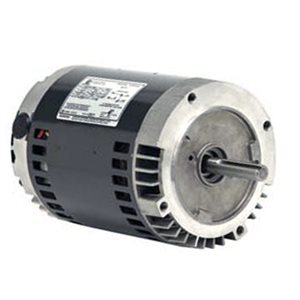

# D13P2ACR - 1/3 HP, 208-230/460 Volt

# D13P2ACR - 1/3 HP, 208-230/460 Volt
U.S. Motors
Code: D13P2ACR
Amps: 1.4-1.4/.07 A Freq: 60 Hz RPM: 1725
"C" Dim: 11.39" Rot: REV Brg: Ball
Type: Three Phase Encl: ODP

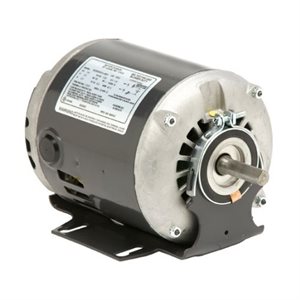

# D13P2AH9 - 1/3 HP, 208-230/460 Volt

# D13P2AH9 - 1/3 HP, 208-230/460 Volt
U.S. Motors
Code: D13P2AH9
Amps: 1.4-1.4/0.7 Freq: 60 Hz RPM: 1725
"C" Dim: 11.81" Rot: REV Brg: Ball
Type: Three Phase Encl: ODP

# D14P2B4 - 1/4 HP, 208-230/460 Volt

# D14P2B4 - 1/4 HP, 208-230/460 Volt
U.S. Motors
Code: D14P2B4
Amps: 1.3-1.3/0.7 Freq: 60 Hz RPM: 1725
Shaft: 1/2" x 1.5" Rot: REV Brg: Ball
Type: Three Phase Encl: ODP

# D15P1D - 15 HP, 208-230/460 Volt

# D15P1D - 15 HP, 208-230/460 Volt
U.S. Motors
Code: D15P1D
Amps: 40/36/18 Freq: 60 Hz RPM: 3490
Shaft: 1-3/8" x 3 1/4" Rot: REV Brg: Ball
Type: Three Phase Encl: ODP

# D15P1G - 15 HP, 575 Volt

# D15P1G - 15 HP, 575 Volt
U.S. Motors
Code: D15P1G
Amps: 14.60 Freq: 60 Hz RPM: 3600
"C" Dim: 17.46" Rot: REV Brg: Ball
Type: Three Phase Encl: ODP

# D15P3G - 15 HP, 575 Volt

# D15P3G - 15 HP, 575 Volt
U.S. Motors
Code: D15P3G
Amps: 14.7 Freq: 60 Hz RPM: 1185
Shaft: 1-7/8" x 4.38" Rot: REV Brg: Ball
Type: Three Phase Encl: ODP

# D15V2B - 15 HP, 230/460 Volt

# D15V2B - 15 HP, 230/460 Volt
U.S. Motors
Code: D15V2B
Amps: 37.00/18.60 Freq: 60 Hz RPM: 1775
Shaft: 1-5/8" x 4.44" Rot: REV Brg: Ball
Type: Three Phase Encl: ODP

# D1CA3JH9 - 1 HP, 115/208-230 Volt

# D1CA3JH9 - 1 HP, 115/208-230 Volt
U.S. Motors
Code: D1CA3JH9
Amps: 12.60/6.40-6.30 Freq: 60 Hz RPM: 1200
"C" Dim: 13.80" Rot: REV Brg: Ball
Type: Capacitor Start Encl: ODP

# D1P2AHC - 1 HP, 208-230/460 Volt

# D1P2AHC - 1 HP, 208-230/460 Volt
U.S. Motors
Code: D1P2AHC
Amps: 3.20-3.0/1.50 Freq: 60 Hz RPM: 1725
"C" Dim: 12.39" Rot: REV Brg: Ball
Type: Three Phase Encl: ODP

# D1P2DH9 - 1 HP, 208-230/460 Volt

# D1P2DH9 - 1 HP, 208-230/460 Volt
U.S. Motors
Code: D1P2DH9
Amps: 3.2-3.0/1.5 Freq: 60 Hz RPM: 1800
"C" Dim: 12.81" Rot: Reversible Brg: Ball
Type: Three Phase Encl: ODP
