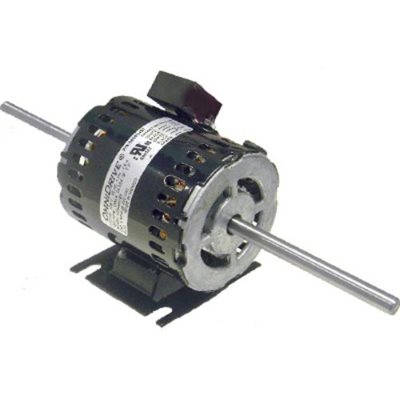

# 99080487 - 1/12 HP, 120 Volt
Product Code: 99080487
- Horsepower : 1/12
- Voltage : 120
- Amps : 2.00
- RPM : 1625
- Frequency : 60 Hz
- Length : 4-3/32”
- Enclosure : Open
- Shaft Dim. : 4-1/8" x 3/8” x 4-1/8”
- Type : Permanent Split Capcitor
- Diameter : 3.3”
- Bearings : Sleeve
- Rotation : CWLE
- Protector : Thermally Protected
- Service Factor : 1.00
- Phase : 1
- Ambient Temp. : 40°C
- Feature(s) : Double Shaft
- Weight (lbs.) : 6
- Reference : Broan L500 L500L L500K L500KL, JE2J051N, JE2J066N, S99080487
