Century

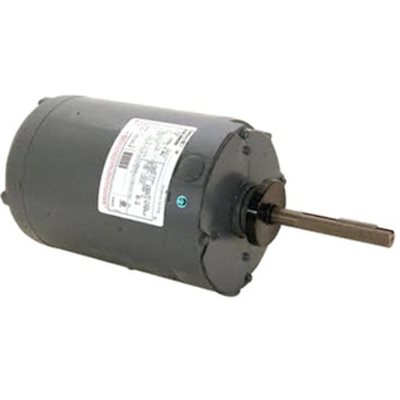

# 181651 - 2 HP, 575 Volt

Product Code: 181651

  • Horsepower : 2
  • Voltage : 575
  • Amps : 2.70
  • RPM : 1140
  • Frequency : 60 Hz
  • Length : 10-1/4"
  • "C" Dim. : 12-3/4"
  • Enclosure : Totally Enclosed
  • Shaft Dim. : 5/8” x 2-1/2”
  • Type : Three Phase
  • Speeds : 1
  • Diameter : 6-1/2"
  • Frame : 56Y
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Phase : 3
  • Ambient Temp. : 60°C
  • Feature(s) : Class 'B' Insulation, Round Body, Thru Bolts
  • Weight (lbs.) : 43
  • Reference : Connections are at opposite shaft end
