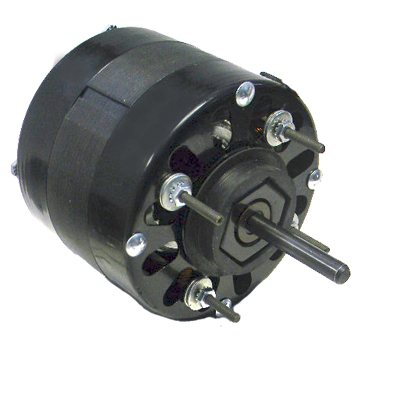

# SS2930 - 1/10 HP, 115/208-230 Volt
Double-tap and hold to zoom.
Mouse over the image to zoom.

# SS2930 - 1/10 HP, 115/208-230 Volt

Product Code: SS2930

  • Horsepower : 1/10
  • Voltage : 115/230
  • Amps : 4.10/2.00
  • RPM : 1050
  • Frequency : 60 Hz
  • Length : 3-7/8”
  • Enclosure : Open
  • Shaft Dim. : 3/8” x 2-13/16"
  • Type : Shaded Pole
  • Diameter : 5.0”
  • Bearings : Sleeve
  • Rotation : CWSE
  • Protector : Thermally Protected
  • Phase : 1
  • Ambient Temp. : 40°C
  • Feature(s) : Includes Cushion Rings, Base, Clips, 3/8” to 1/2” Bushing, 4 Studs on 3.50” B.C.D.
  • Weight (lbs.) : 11
