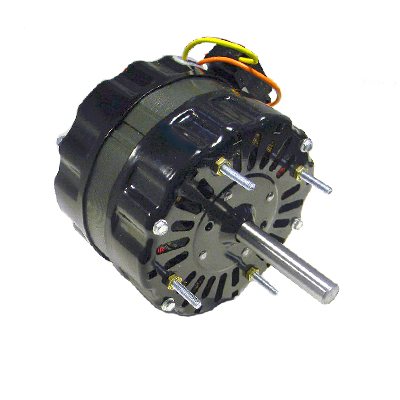

# SS8318 - 1/8 HP, 115 Volt
Product Code: SS8318
- Horsepower : 1/8
- Voltage : 115
- Amps : 2.60
- RPM : 1550
- Frequency : 60 Hz
- Length : 3-1/2”
- Enclosure : Open
- Shaft Dim. : 1/2” x 2-3/4”
- Type : Permanent Split Capacitor
- Speeds : 3
- Diameter : 5.0”
- Bearings : Sleeve
- Rotation : CCWSE
- Protector : Thermally Protected
- Feature(s) : 4 Bolts, Mounted Capacitor
- Weight (lbs.) : 9
