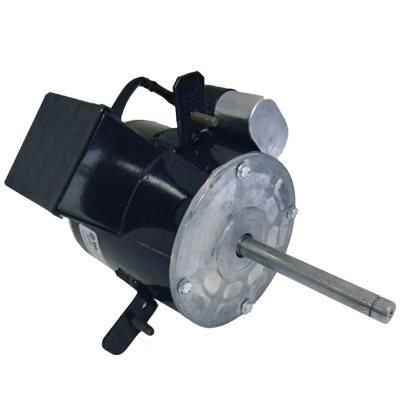

# SS1616 - 1/8 HP, 115 Volt
Product Code: SS1616
- Horsepower : 1/8
- Voltage : 115
- Amps : 2.16
- RPM : 1550
- Frequency : 60 Hz
- Length : 4-5/8"
- "C" Dim. : 8-7/16"
- Enclosure : Totally Enclosed
- Shaft Dim. : 1/2" x 3-3/4"
- Type : Permanent Split Capacitor
- Speeds : 2
- Diameter : 5-5/8"
- Frame : 42
- Bearings : Ball
- Rotation : CWSE
- Protector : Automatic
- Service Factor : 1.00
- Phase : 1
- Ambient Temp. : 40°C
- Feature(s) : No Base, 3 Lugs, C-Box included
- Weight (lbs.) : 12
