- # SS739B - 1/4 HP, 208-230 Volt

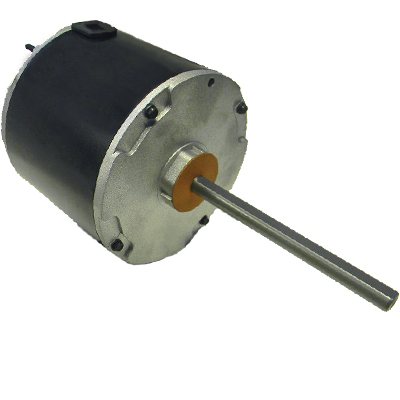

# SS739B - 1/4 HP, 208-230 Volt
Product Code: SS739B
- Horsepower : 1/4
- Voltage : 208-230
- Amps : 1.90
- RPM : 825
- Frequency : 60 Hz
- Length : 4-1/4”
- Enclosure : Totally Enclosed
- Shaft Dim. : 1/2” x 61/2”
- Type : Permanent Split Capacitor
- Diameter : 5-5/8"
- Frame : 48
- Bearings : Ball
- Rotation : Reversible
- Protector : Automatic
- Phase : 1
- Ambient Temp. : 60°C
- Capacitor Rating : 5MFD-370V
- Feature(s) : Shaft Slinger, Extended Thru-Bolts, Reversing Plug
- Weight (lbs.) : 11
