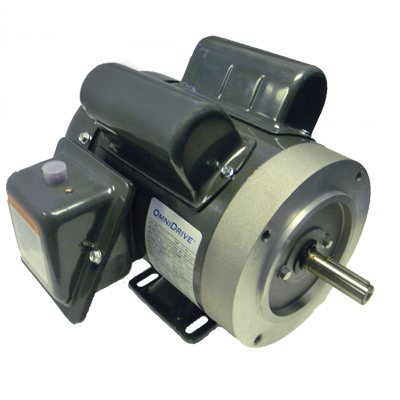

# FD145C - 1.5 HP, 115/208-230 Volt

Product Code: FD145C

Horsepower : 1.5
Voltage : 115/208-230
Amps : 14.00/7.00
RPM : 3600
Frequency : 60 Hz
"C" Dim. : 12.00”
Enclosure : Totally Enclosed Fan Cooled
Type : Capacitor Start/Run
Diameter : 6-1/2"
Frame : 56C
Bearings : Ball
Rotation : Reversible
Protector : Manual Overload
Service Factor : 1.15
Phase : 1
Ambient Temp. : 40°C
Feature(s) : Rolled Steel Construction, Class ‘B’ Insulation, Continuous Duty, UL Listed & CSA Approved, Removable Rigid Base
Weight (lbs.) : 37
