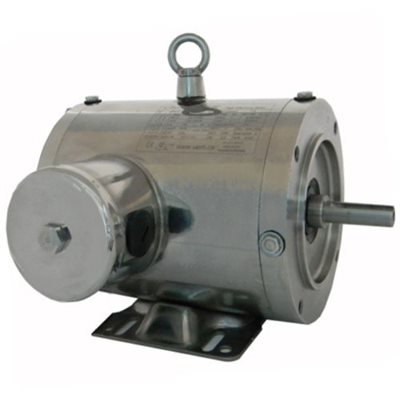

# MS683C - 3/4 HP, 208-230/460 VOLT, IP69K

Product Code: MS683C

Horsepower : 3/4
Voltage : 208-230/460
Amps : 2.69-2.43/1.22
RPM : 1800
Frequency : 60 Hz
"C" Dim. : 10.00"
Enclosure : Totally Enclosed Non-Ventilated
Type : Three Phase
Speeds : 1
Diameter : 6-1/2"
Frame : 56C
Base : Rigid
Efficiency : 78.0%
Bearings : Ball
Rotation : Reversible
Protector : None
Service Factor : 1.15
Phase : 3
Ambient Temp. : 40°C
Feature(s) : 304 Stainless Steel, Class ‘F’ Insulation, Engraved Name Plate, VPI, Dip and Bake, Standardized Bearing Cap, C-Face as a Standard, Double Lipped Seals on Both Ends, Rigid Base
Weight (lbs.) : 36
