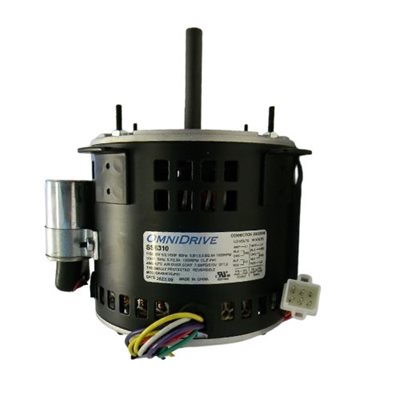

# SS6310 - 1/3-1/2 HP , 115 Volt
Double-tap and hold to zoom.
Mouse over the image to zoom.

# SS6310 - 1/3-1/2 HP , 115 Volt

Product Code: SS6310

  • Horsepower : 1/3-1/2
  • Voltage : 115/230
  • Amps : 3.8/1.9-5.6/2.8
  • RPM : 1625
  • Frequency : 60/50 Hz
  • Enclosure : Open Air Over
  • Shaft Dim. : 1/2" x 2-7/8"
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Frame : 48Y
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.0
  • Phase : 1
  • Ambient Temp. : 40°C
  • Weight (lbs.) : 14
  • Reference : CaptiveAire 6310R , 63100 , 48A17011036 , 48A170321A , 48A17O11036 , 48A17O321A, CK48HF25JF01, DU33L, DU33H, DR33L, DR33H
