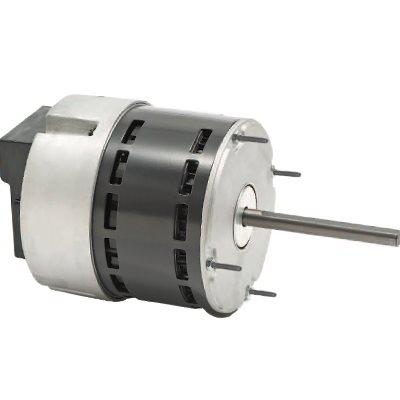

# EM-8650UI - 1 HP, 115/208-230 Volt

Product Code: EM-8650UI

Horsepower : 1-3/4
Voltage : 115/208-230
Amps : 11.00/7.70-6.70 & 11.80/7.30-6.60
RPM : 300-1200
Frequency : 60/50 Hz
"C" Dim. : 11.75"
Enclosure : Open Air Over
Shaft Dim. : 1/2" x 4-1/2"
Type : Electronically Commutated
Frame : 48Y
Efficiency : up to 82%
Bearings : Ball
Rotation : CWLE
Protector : Electronically
Phase : 1
Ambient Temp. : 40°C
Feature(s) : Class 'B' Insulation, 0-10 VDC, remote or on-board potentiometer, LED display indicates RPM and percent of demand, Powered off any line voltage from 115V-277V no seperate transformer required, 300 RPM minimum speed, Optional remote potentiometer (customer supplied) allows control from up to 50' away
Weight (lbs.) : 18
